Torsion Bar Synchronous NC Press Brake

Standard two axis control (Y, X)
Mechanical torque synchronization
Domestic famous hydraulic integrated system
Schneider or Siemens low-voltage electrical
Inverter control motor operation
Imported seals
Ball screw back gauge operation control
Standard upper and lower molds (upper inclined block type deflection compensation)
Front material supporting frame

Inquire Now

Product Description

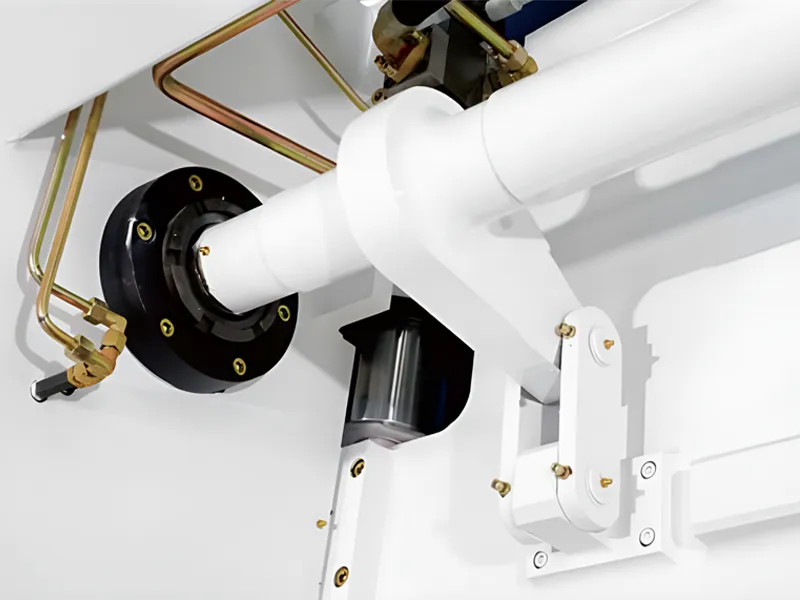

Torque Synchronous Control System

Adopt steel torsion bar synchronization systemthe structure is very simple, but the accuracy isvery high. At the two ends of the ram, there aretwo synchronizing devices so that the rammovement is always parallel to the worktableThis structure highlights the effect of balancingmotion during operation.


Safety Guards	Mechanical Crowning
The MSD LASER laser protection device can provide comprehensive and effective safety protection for the bending machine, protecting the operator’s personal safety.	The compensation amount is automatically calculated and set by the NC system to ensure the consistency of the full-length bending angle.

Technical Parameter

Type	Nominal Force	Warinable length	Poles Distance	Throat Depth	Siider Travel	Mar Open	Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm/min-1y	(mm)	(kw)	Lxwhhimm)
40T/2200	400	2200	1600	260	100	320	4	2200x1200x1910
40T/2500	400	2500	1950	260	100	320	4	2500x1200x1910
50T/2500	500	2500	1950	260	100	330	5.5	2500x1260x2000
63T/2500	630	2500	1950	280	120	330	5.5	2500x1300x2210
637/3200	630	3200	2550	280	120	330	5.5	3200x1300x2210
80T/3200	800	3200	2550	300	120	360	7.5	3200x1400x2300
80T/4000	800	4000	3050	300	120	360	7.5	4000x1400x2300
100T/2500	1000	2500	1950	320		380	7.5	2500x1500x2400
100T/3200	1000	3200	2550	320	120	380	7.5	3200x1500x2400
100T/4000	1000	4000	3050	320	120	380	7.5	4000x1500x2400
125T/3200	1250	3200	2550	320	120	380	7.5	3200x1550x2500
125T/4000	1250	4000	3050	320	120	380	7.5	4000x1550x2500
160T/3200	1600	3200	2550	340	200	460	11	3200x1650x2700
160T/4000	1600	4000	3050	340	200	460	11	4000x1650x2700
160T/5000	1600	5000	3950	340	200	460	11	5000x1750x3100
160T/6000	1600	6000	4950	340	200	460	11	6000x1800x3200
200T/3200	2000	3200	2550	360	200	460	15	3200x1950x2800
200T/4000	2000	4000	3050	360	200	460	15	4000x1950x2800
200T/5000	2000	5000	4000	360	200	460	15	5000x1950x3000
200T/6000	2000	6000	5000	360	200	460	15	6000-2000×3200
250T/3200	2500	3200	2600	400	250	460	18.5	3200-2000×3200
250T/4000	2500	4000	3100	400	250	460	18.5	4000-2000×3400
250T/5000	2500	5000	4000	400	250	460	18.5	5000-2000×3400
250T/6000	2500	6000	5000	400	250	460	18.5	6000,2000×3400
300T/3200	3000	3200	2600	400	250	520	22	32002000×3400
300T/4000	3000	4000	3100	400	250	520	22	40002000×3450
300T/5000	3000	5000	4000	400	250	520	22	5000-2000×3450
300T/6000	3000	6000	5000	400	250	520	22	6000x2000x3450
3501/4000	3500	4000	3100	400	250	520	22	40002080×3450
350T/5000	3500	5000	4000	400	250	520	22	5000x2080x3450
350T/6000	3500	6000	5000	400	250	520	22	6000-2080×3450
400T/4000	4000	4000	3100	400	300	560	30	40002180×3500
400T/5000	4000	5000	4000	400	300	560	30	5000-2180×3500
400T/6000	4000	6000	5000	400	300	560	30	6000-2180×3800
500T/4000	5000	4000	3100	400	300	600	37	4000:235043700
500T/5000	5000	5000	4000	400	300	600	37	60002380y3700
500T/6000	5000	6000	5000	400	300	600	37	6000-2300×3800
600T/4000	6000	4000	3100	400	300	600	45	4000v2400x3700
600T/5000	6000	5000	4000	400	300	600	45	5000-2400×3700
600T/6000	6000	6000	5000	400	300	600	45	6000x2400x3800
